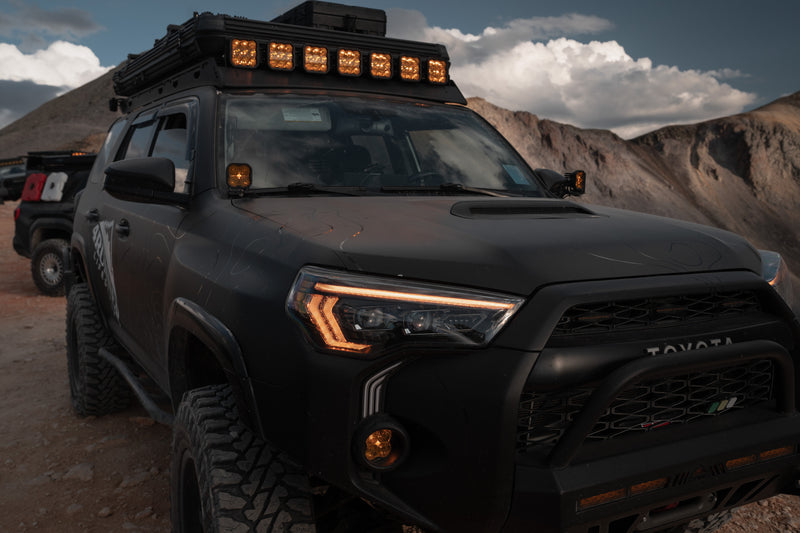

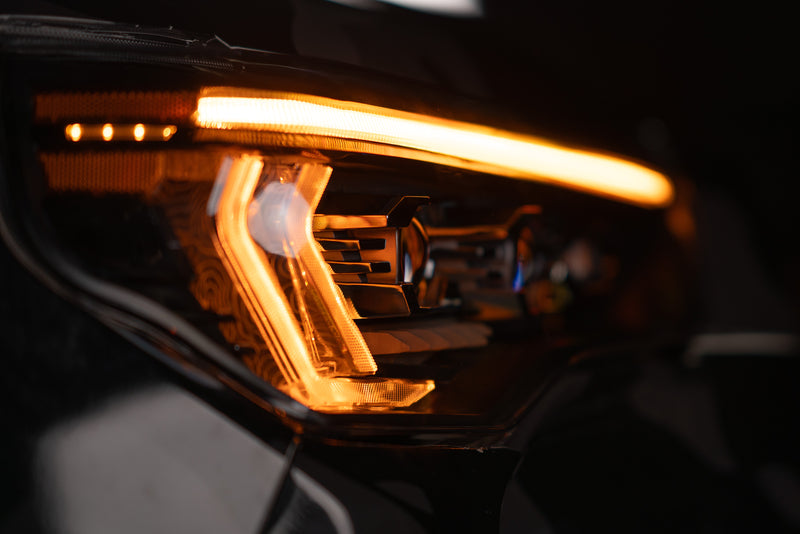

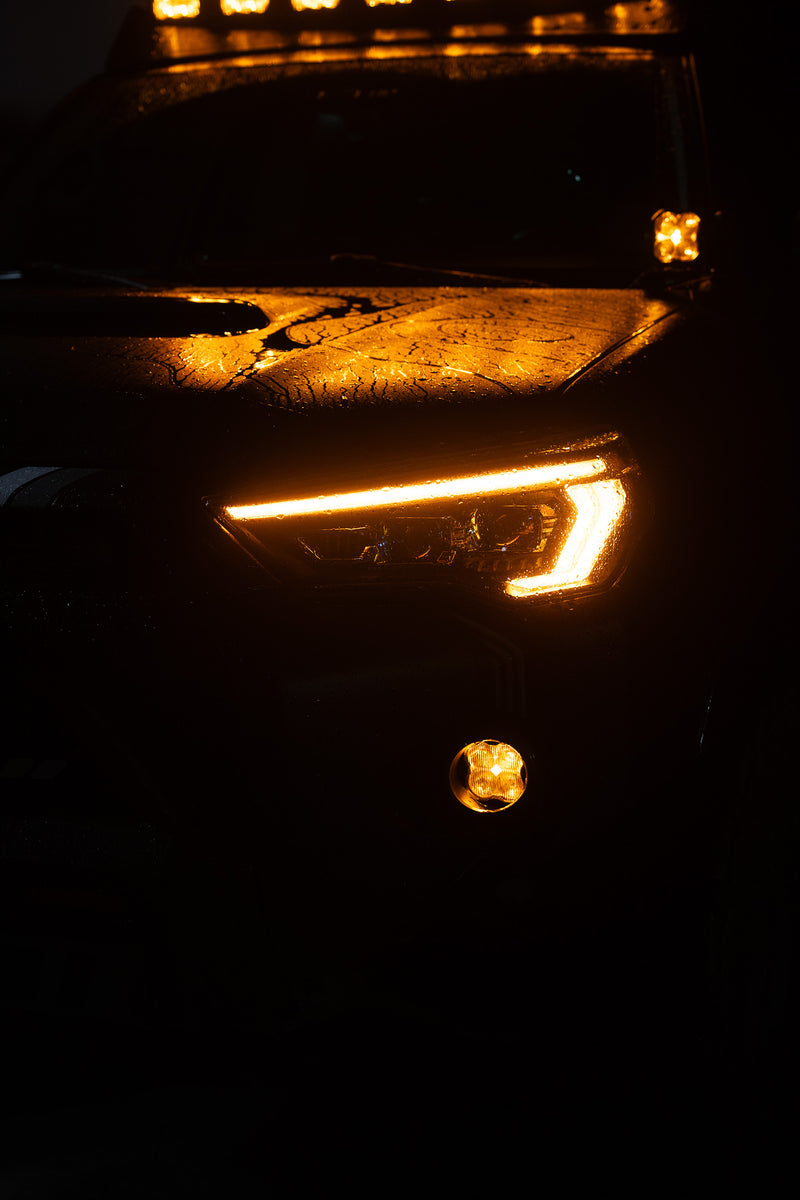

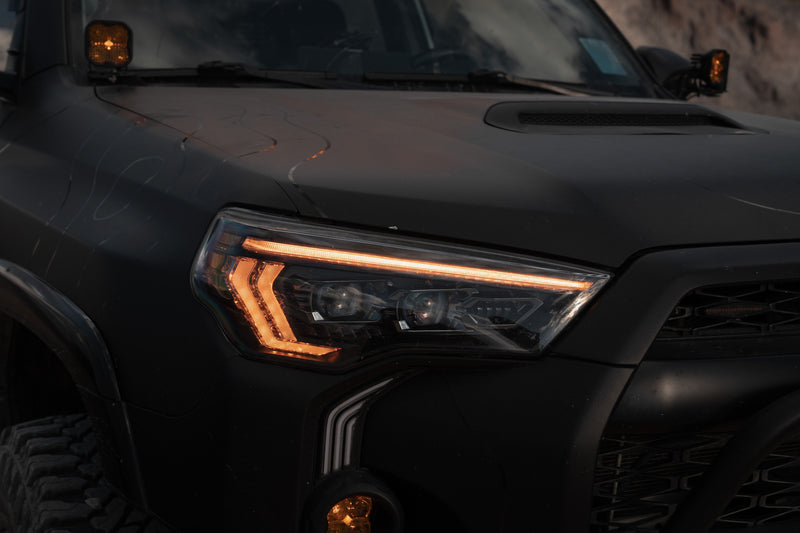

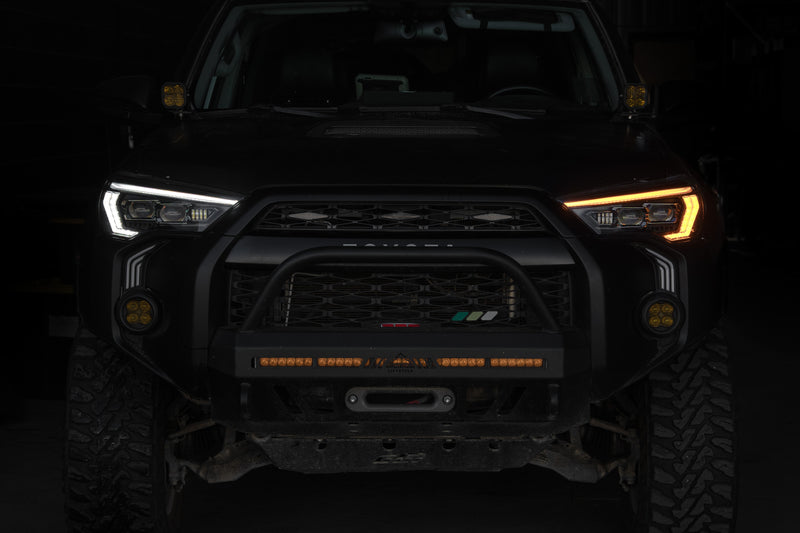

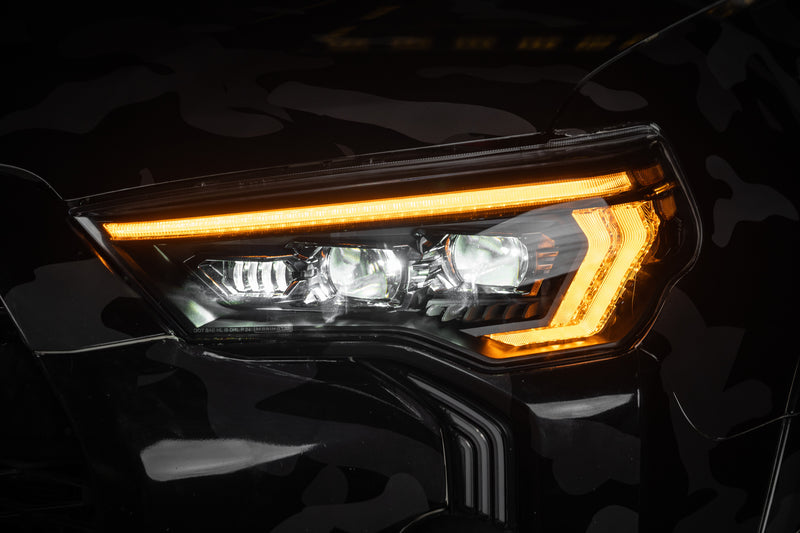

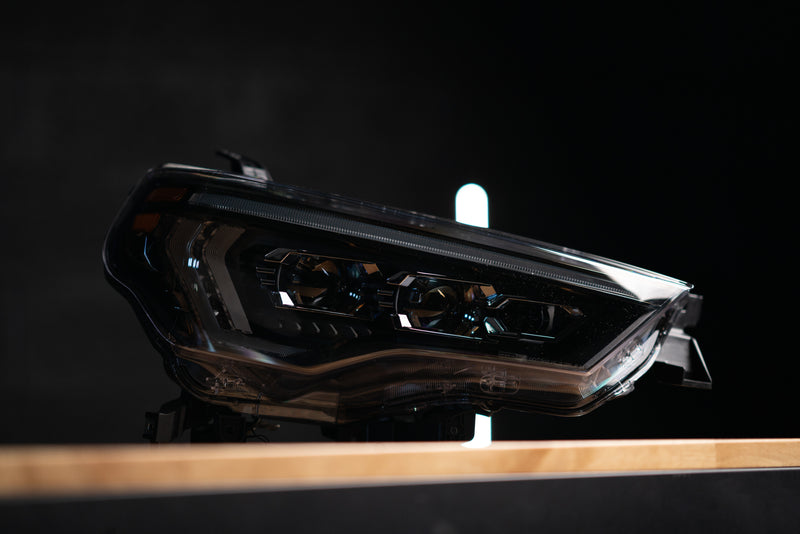

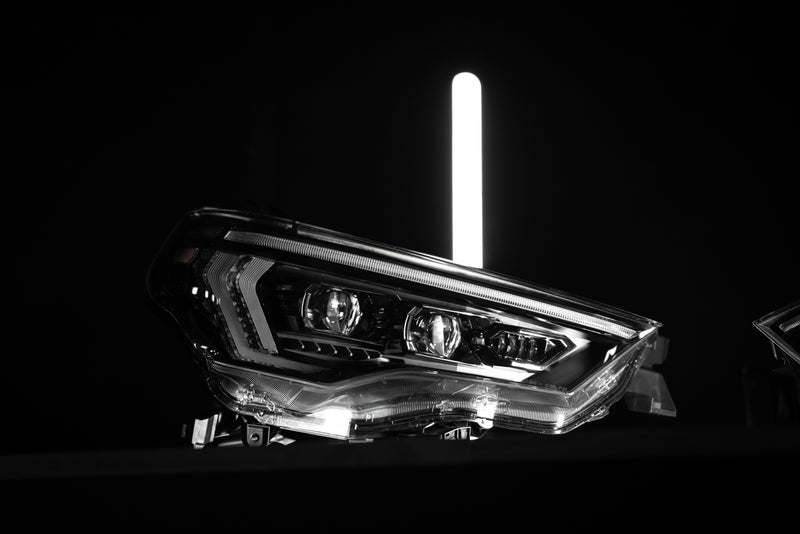

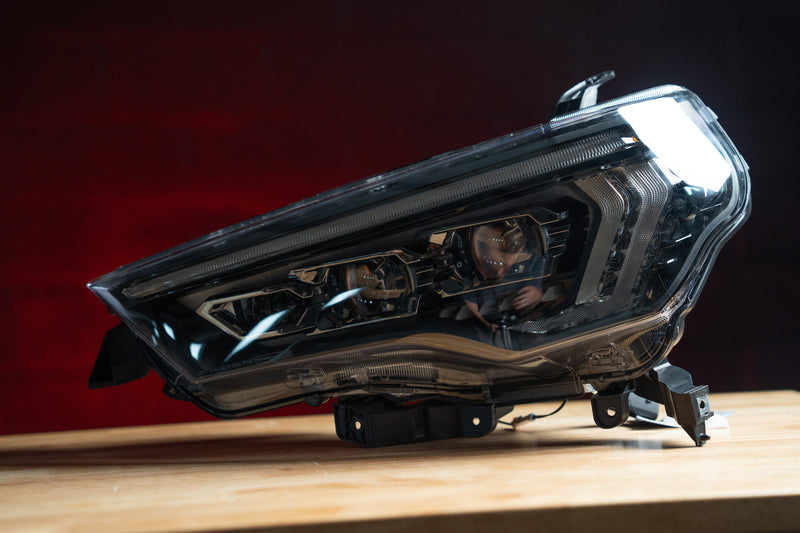

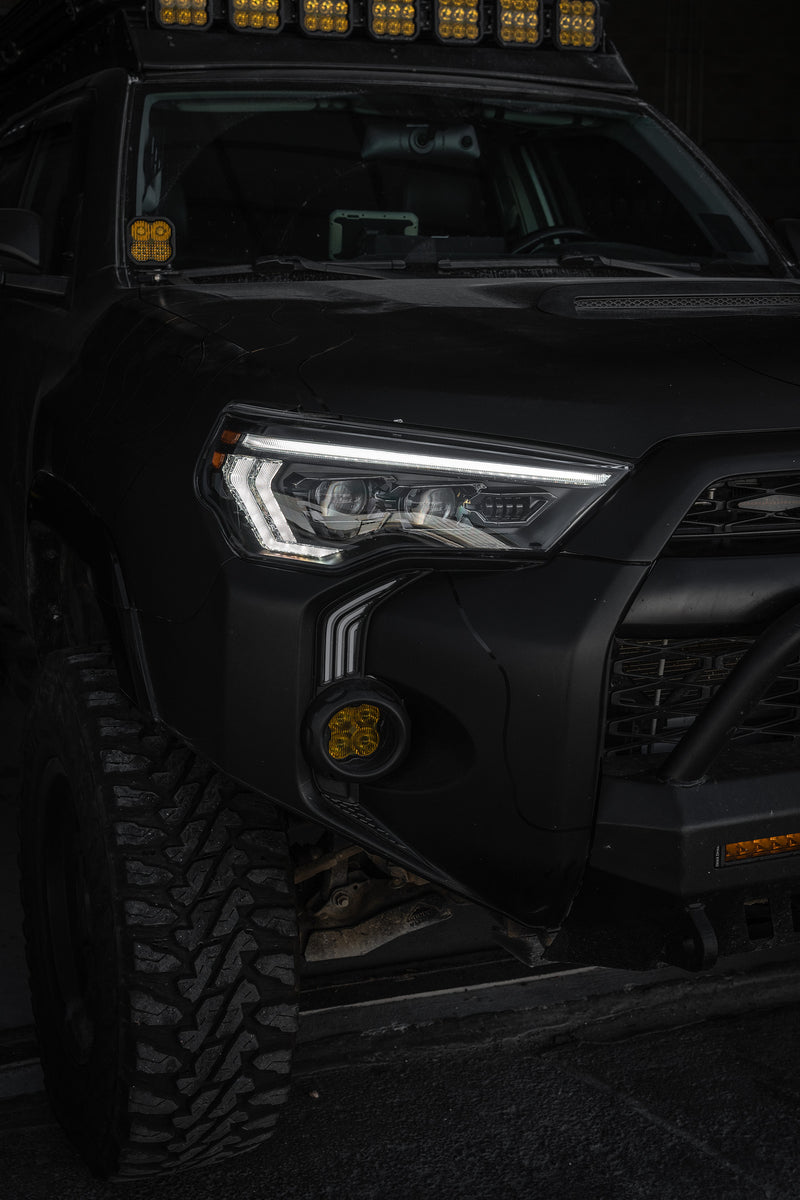

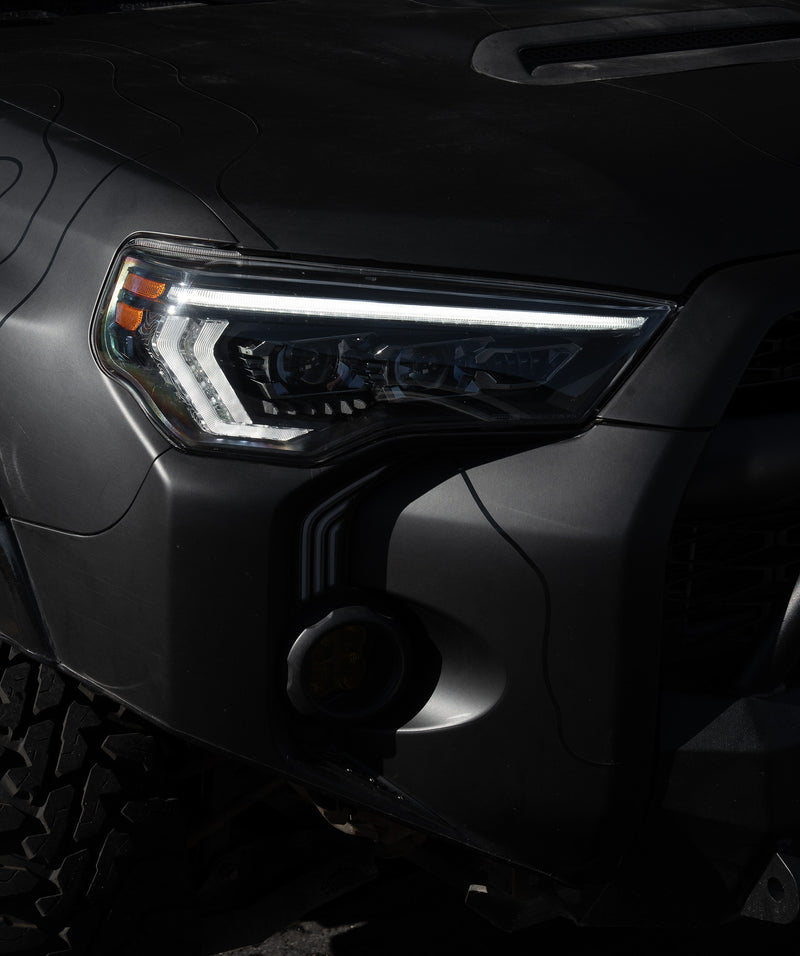

Morimoto XB EVO DUAL DRL Headlights For 4Runner (2014-2024)
8IN STOCK, READY TO SHIP! NO LEAD TIME
- XB Evo: Much more than a design refresh, these headlights showcase Morimoto’s commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.
- All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing dual Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will outperform the XB Evo.
- On and Off Road: DOT Compliant for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30%, making them the brightest option for 4Runner owners who want to maximize output for off-road use.
- Frost-Free System: Warms the lens surface to prevent frost buildup during wet and snowy conditions in winter. Activated by flashing the high beams four times when the temperature drops below 5C, this ensures consistent headlight performance in cold climates.

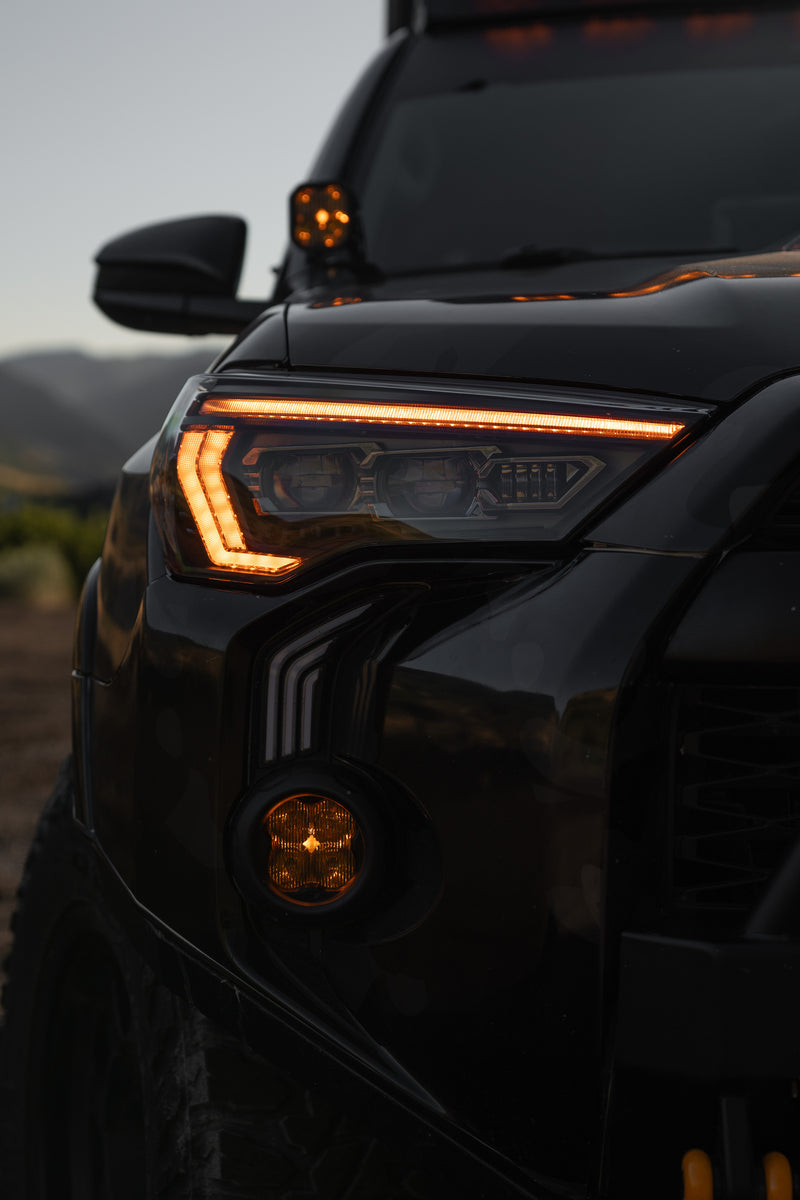

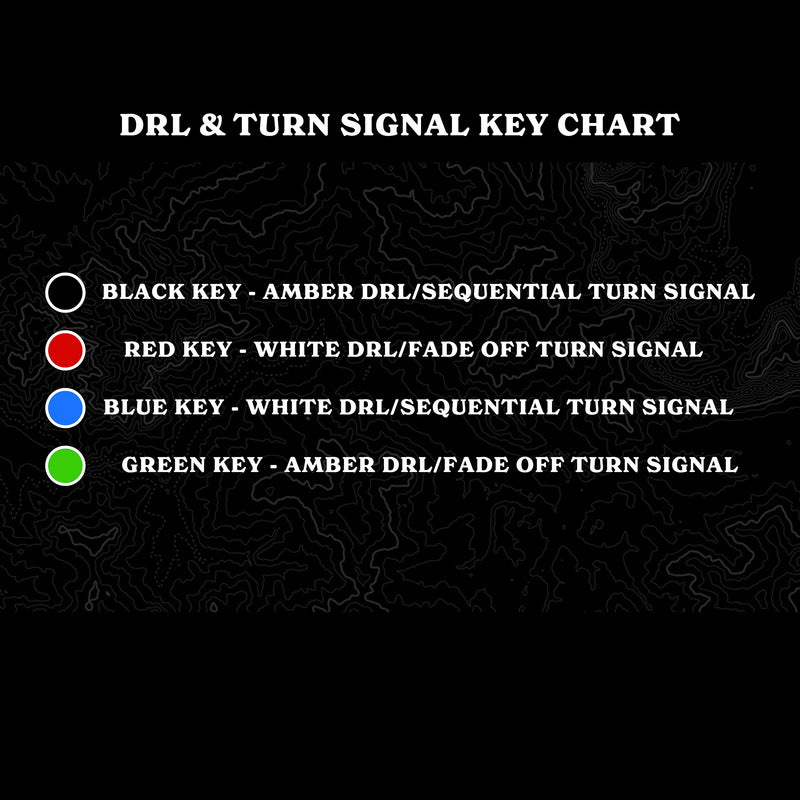

- Signal Swap Keys: Enable users to personalize the operation of daytime running lights and turn signals via a plug-and-play key. The XB Evo can be configured to run with white or amber daytime running lights and sequential or standard turn signals.
- Designed, engineered, and tested: In the USA by Morimoto, the XB Evo headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.

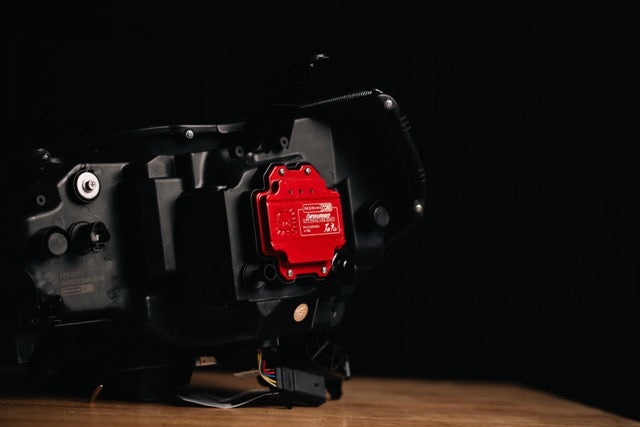

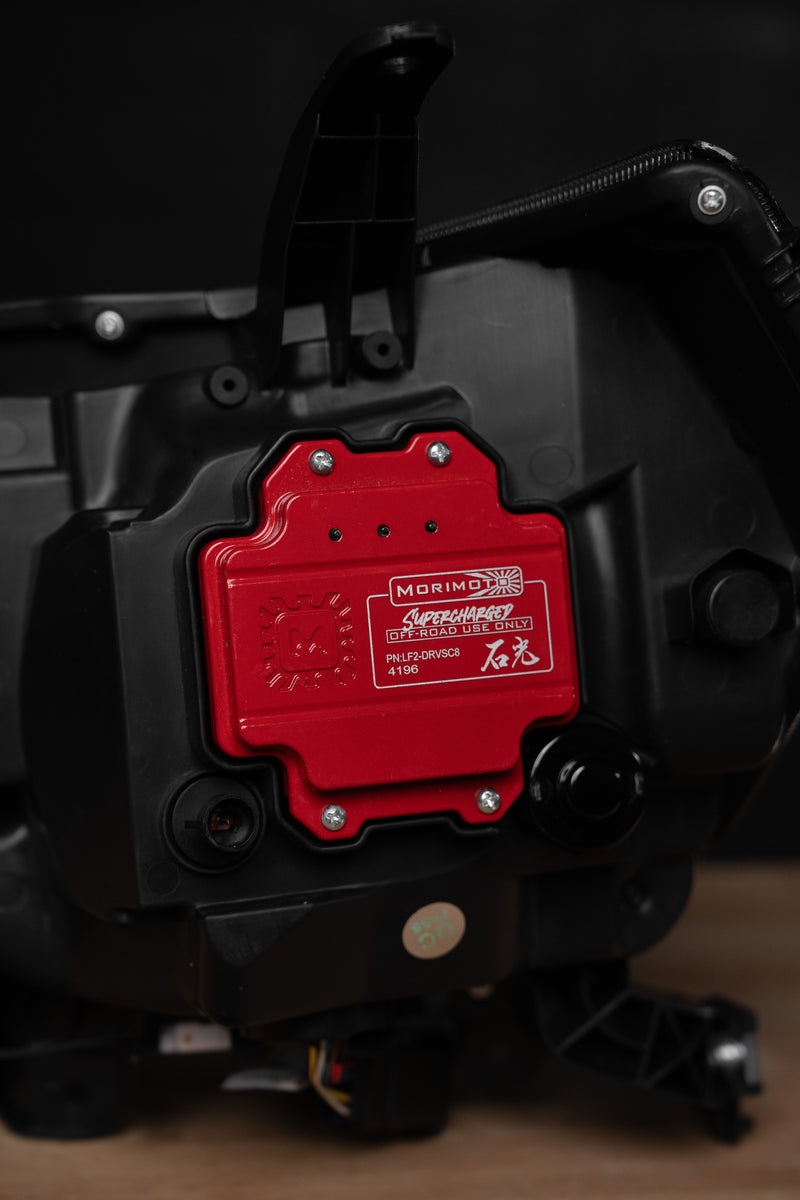

- Superchargers: Headlight LEDs are dampened for Streel Legal use until you install the optional Supercharger which allows your LED to shine at 100% output.

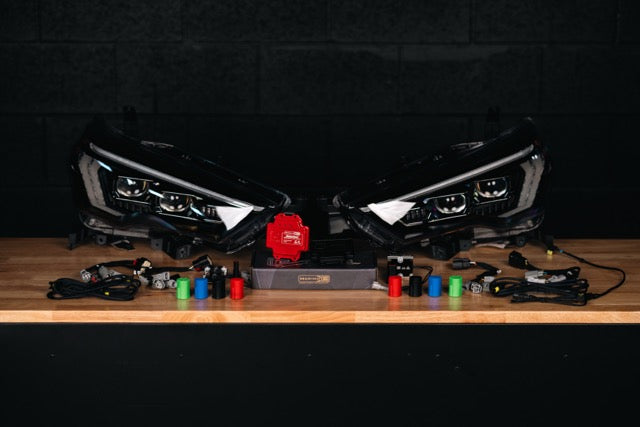

WHAT’S INCLUDED
-

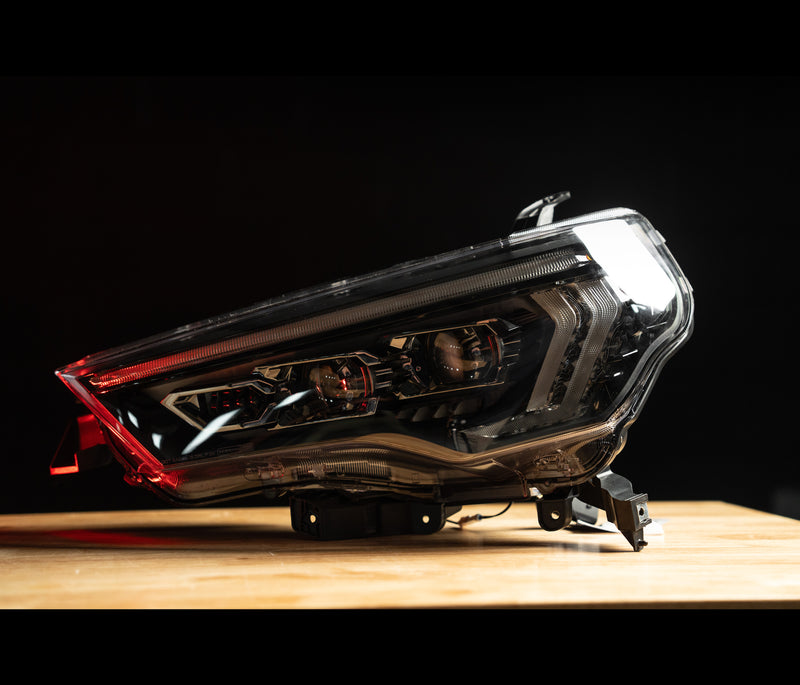

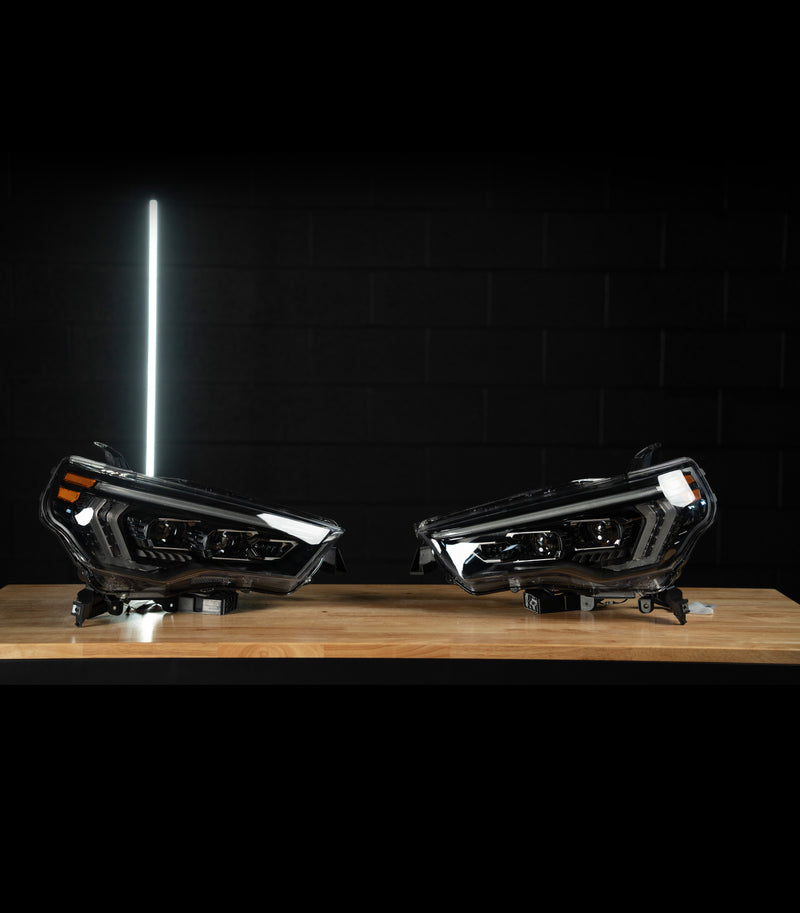

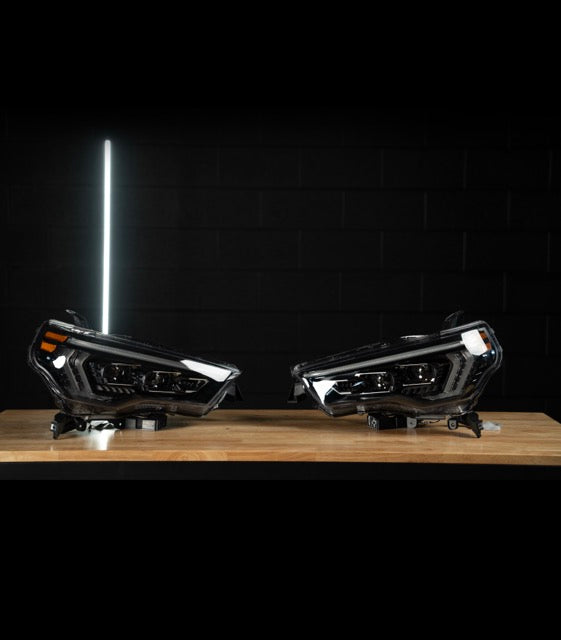

Headlights: 2x (One Pair) 14-24 Toyota 4Runner XB Evo
-

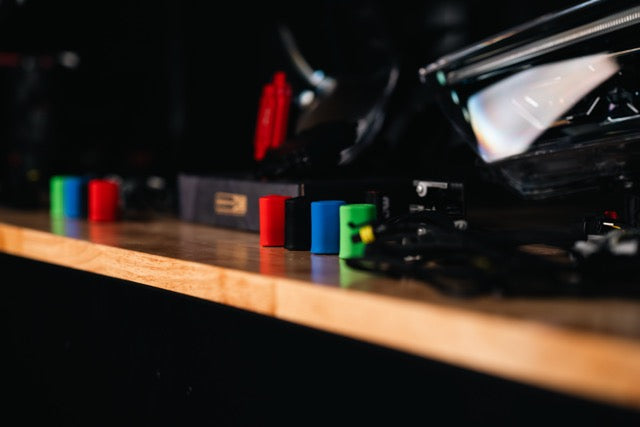

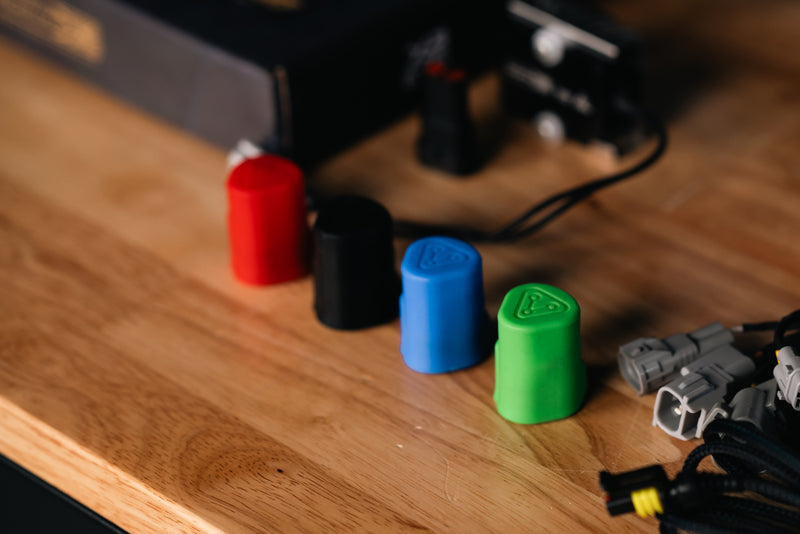

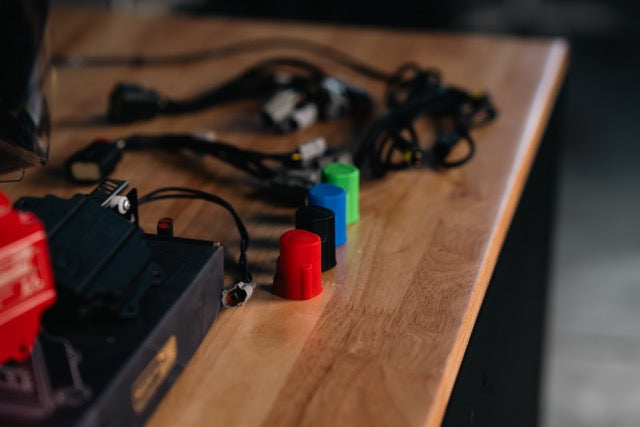

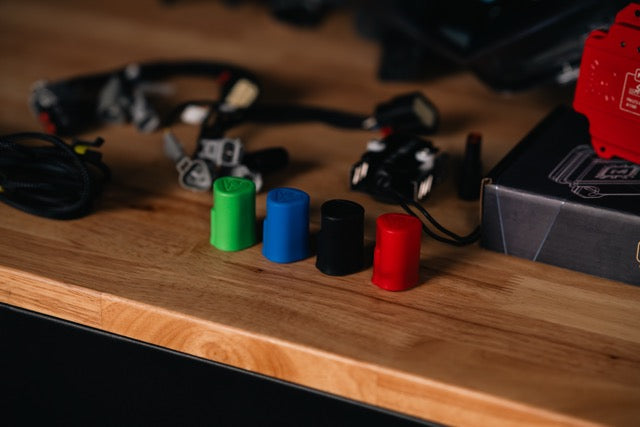

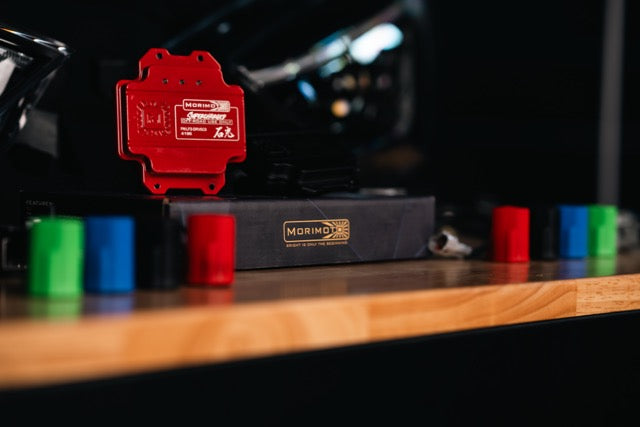

Function Selectors: 8x (Four Pairs) For DRL and Turn Signal Settings
-
Wiring: 2x Halogen Adapters, 2x LED Adapters, 2x Magnet Mount Resistors, 1x DRL Harness, 1x DRL Harness Extension, 1x Fuse Tap
-
Warranty: Five (5) Years
COMPATIBILITY
-
Toyota 4Runner: 2014-2024 (All)
-
Compliance: Meets all DOT, SAE and FMVSS108 Standards*
-
Supercharged Drivers: LF2-DRVSC8*
-
*NOTE: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.
-
NOTE: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.
TECHNICAL SPECIFICATIONS
-
Traffic Pattern: LHD / Right Hand Traffic Only
-
Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)
-
Output (Supercharged Drivers): Non-Compliant
-

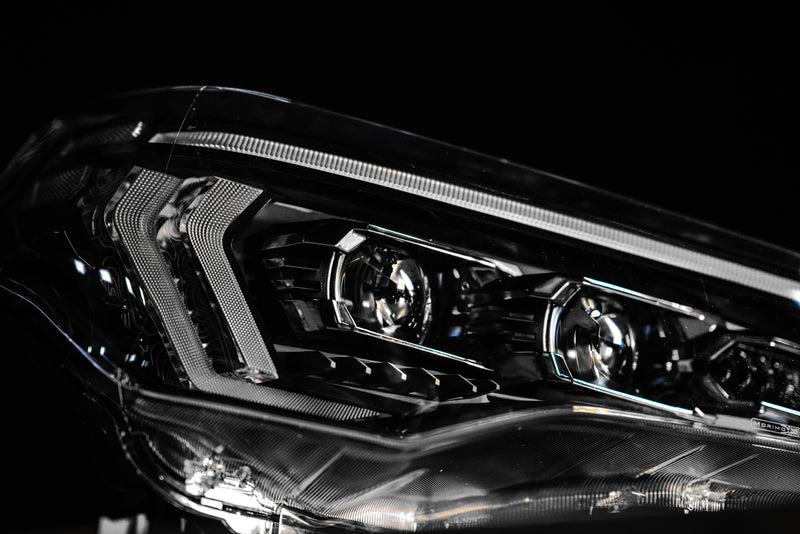

Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
-
High Beam Assist: 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
-
Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating
-

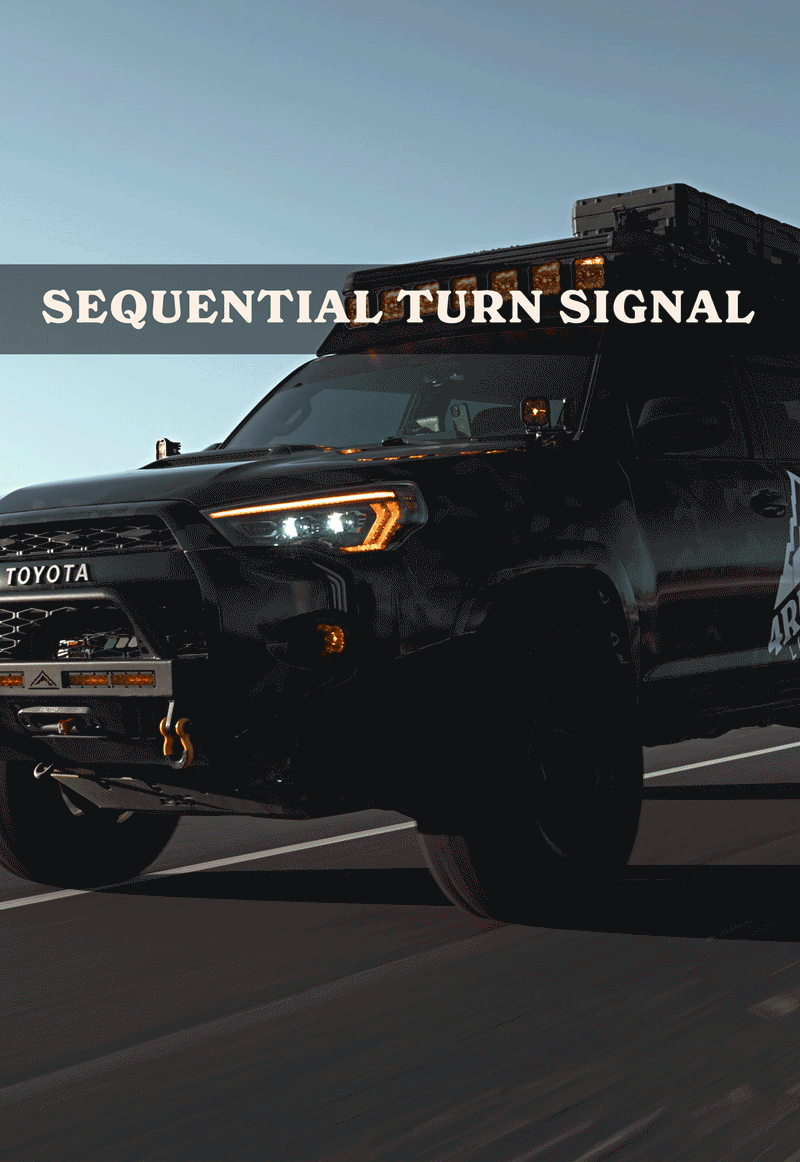

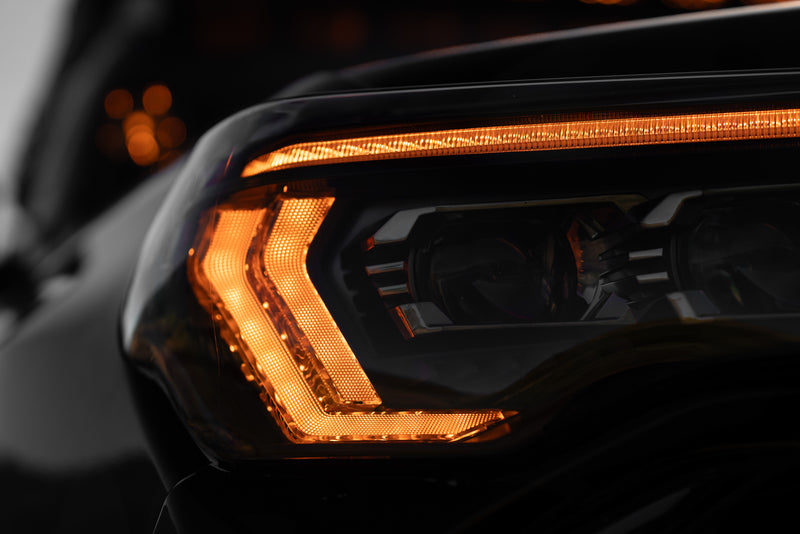

Turn Signal Modes: Sequential or Fade Off (Integrated)
-

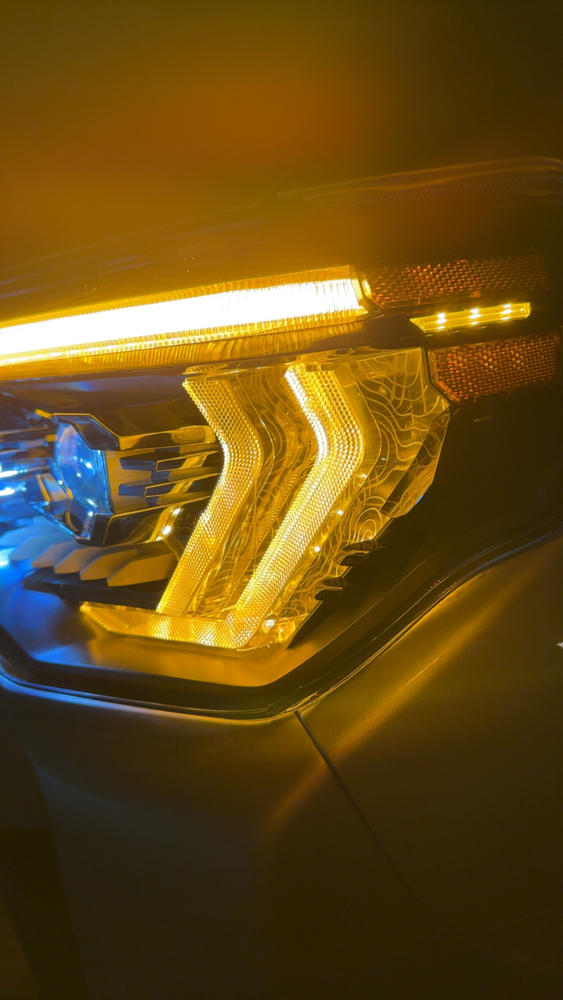

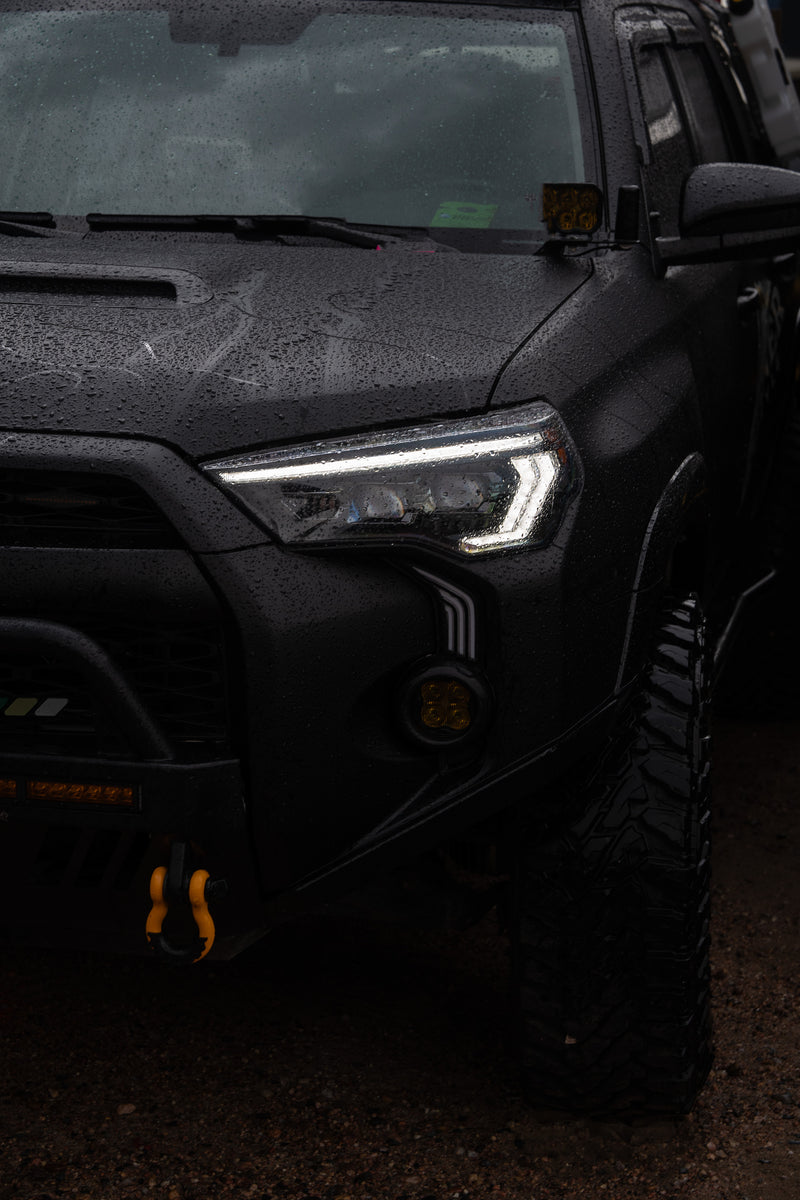

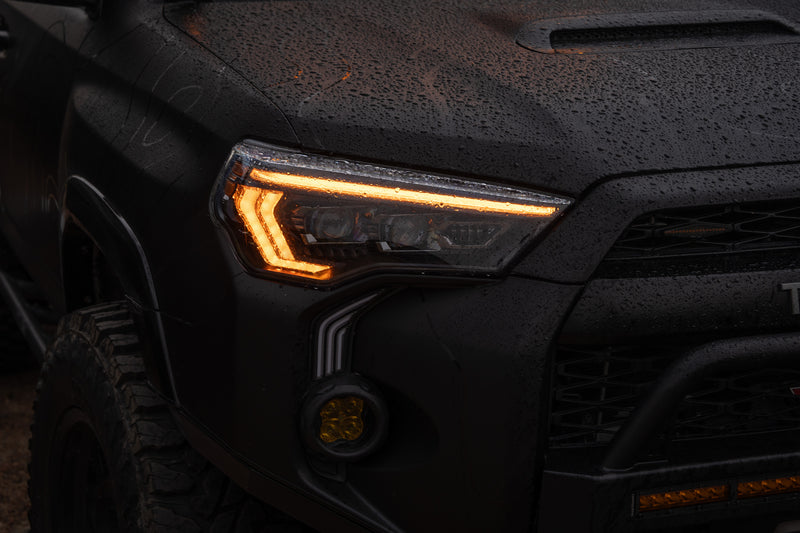

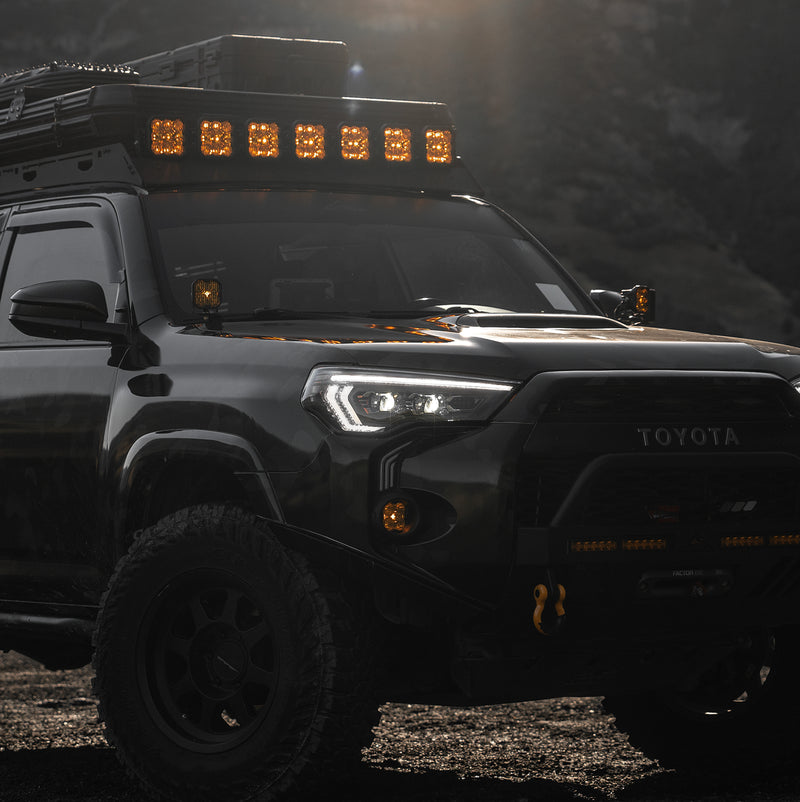

DRL Colors: White or Amber (Integrated)
-

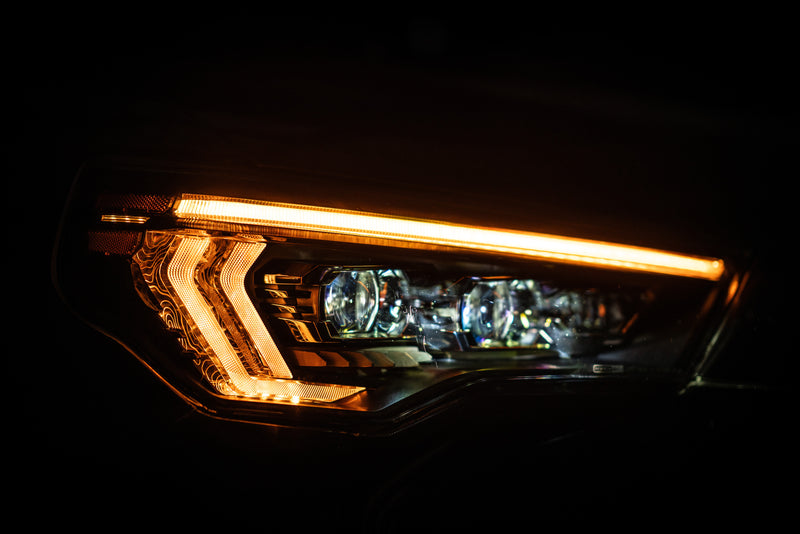

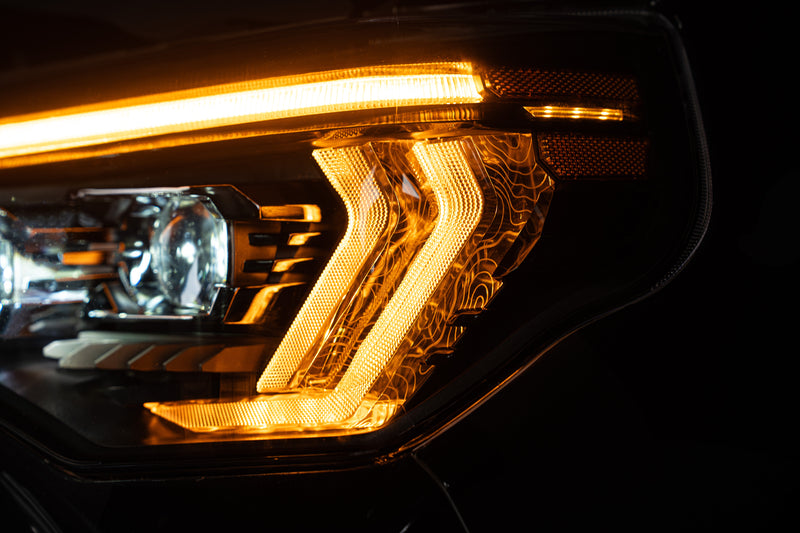

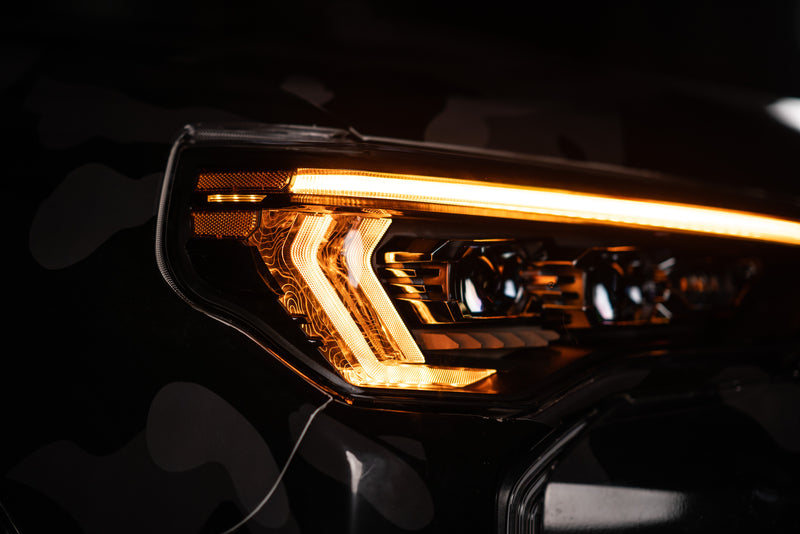

DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern
-

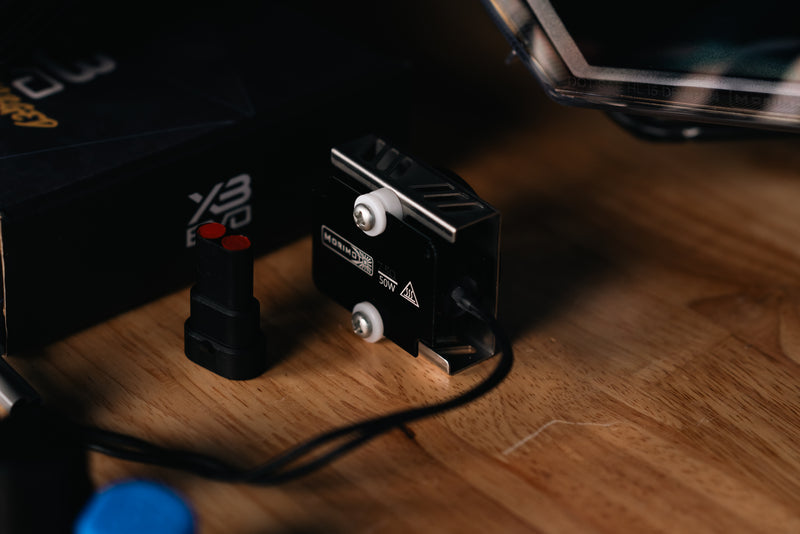

Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans
-
Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures
-

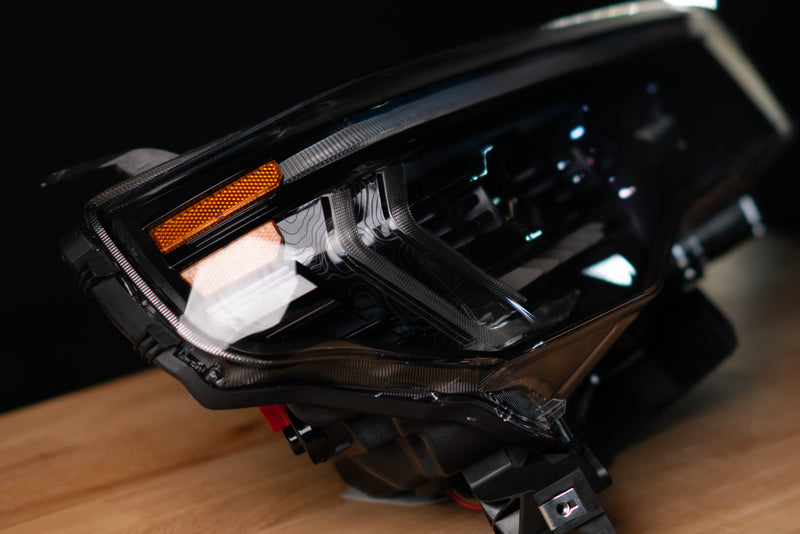

Side marker: Amber side reflex reflector (DOT compliant)
-
Wiring: Plug n Play for all sub-models within model year range
-
Lens Details: Polycarbonate with UV-Shield Hard coating (Exceeds OE-Toyota 3Khr benchmark)
